AIM MXG 1.2 Dash Data Logger
The AIM MXG Dash Data Logger is the ultimate Digital Dash. It features a full color 7" screen which has a fully customizable layout via a convenient button system. 8 alarm lights are programmable by the user. These can accompany warning messages on the dash. Integration with the system is a snap! Configuration can be through wi-fi or the onscreen menus.
Aim MXG 1.2 is the new dash logger designed to acquire and display data coming from your engine ECU, the internal accelerometer, gyro, and from the GPS Module included in the kit. Analog/digital inputs and predefined math channels.
Performance and data acquired can also be incremented adding up to eight expansion modules. The only difference between the two is the is a compact 5″ display and Aim MXG 1.2 is a 7″ display, a better fit for wide cockpit installations.
Features:
• ECU Connection: Capable of acquiring data directly from the vehicle's ECU.
• Analog & Digital Inputs: 8 Analog inputs record up to 1000x per second each. 6 Digital inputs are also included.
• GPS Module: AiM's powerful GPS05 module is included in the kit for accurate lap-time and track position data
• Secondary CAN-line: CAN2 line manages data from additional modules, such as ABS, traction-control, etc.
• Internal Accelerometer & Gyro: Internal 3-Axial accelerometer and a gyroscope for crucial vehicle motion data.
• Math Channels: Configure the dash to immediately display Math Channel values, such as brake bias or a calculated gear.
Freely Configurable Pages
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two push buttons.
CAN Output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
High Contrast 7″ TFT display

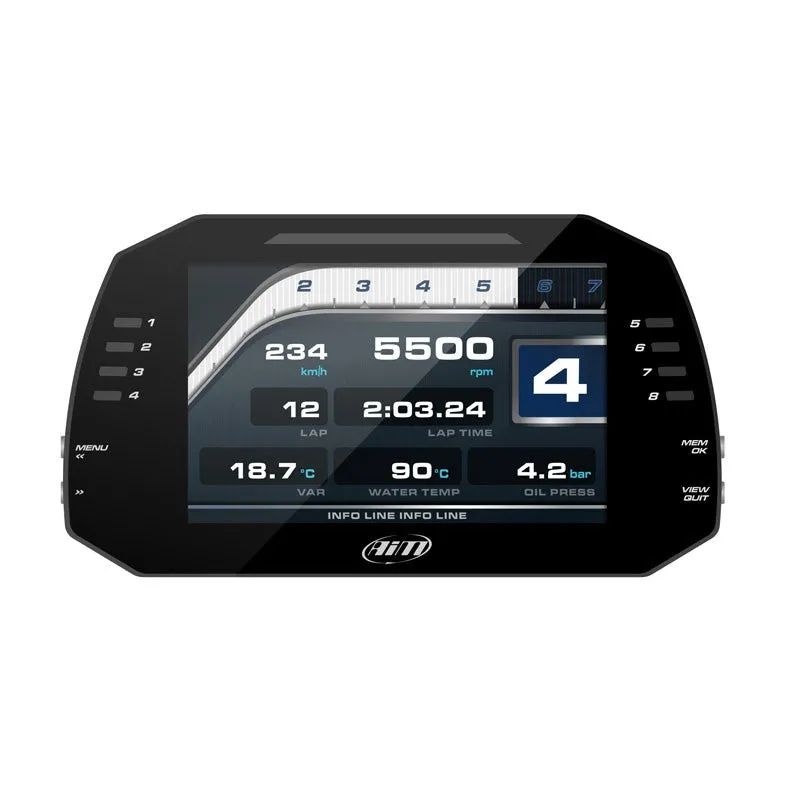

The Aim MXG 1.2 display features a high contrast 7″ TFT display, fully configurable by a dedicated software. An ambient light sensor keeps the backlight at optimum brightness levels.
Flexible Alarms

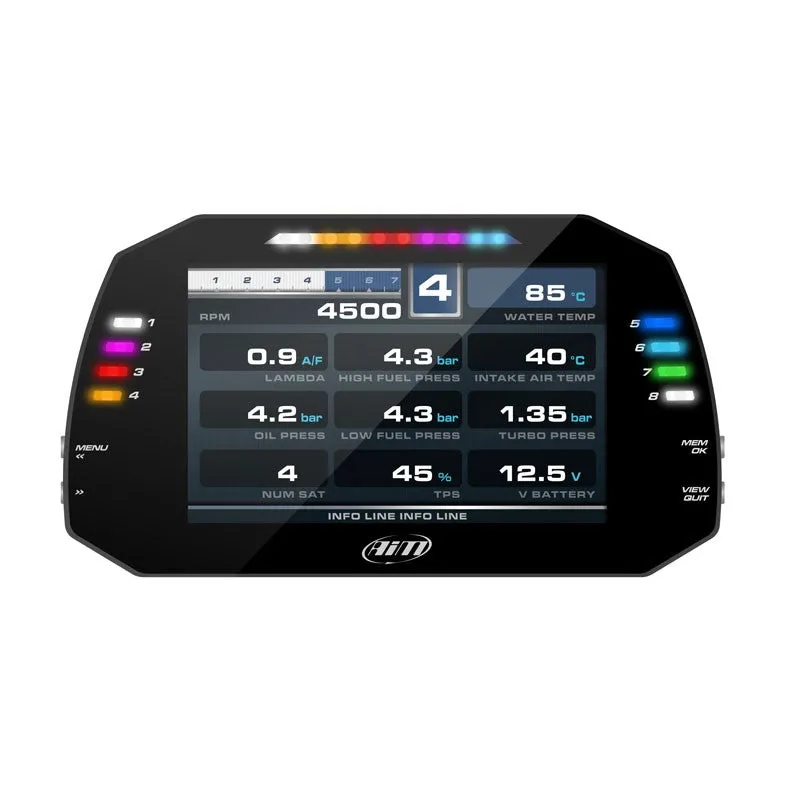

Aim MXG 1.2 has Eight configurable RGB alarm LED’s. You choose the conditions, you choose the colours. Select a solid alarm or flashing one and the flashing frequency then choose to have an accompanying text message and set the alarm priorities.
Two Digital Outputs
Aim MXG 1.2 features two digital outputs. Each of them can give an output of 1 amp at 12 volts: they can be configured in order to be turned on/off depending on the value of the analogue or digital inputs. They permit to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
Integrated Shift Light Array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customised to your liking, and for each unique gear when required
Expand the system according to your needs
| Thanks to GPS09 Module and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique. | |
| It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed. | |
| It adds 4 K thermocouples. | |
| Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion. | |
| The on-board cameras that overlays on videos the data sampled by your logger. | |
| Thanks to the SD Card, Memory Module can record all your data in a file that can be downloaded on your PC for post-analysis. Memory Module, with 16Gb capability, can be connected via CAN-Bus to MXL2 and to all AiM loggers. |
A wide range of data sources
Aim MXG 1.2 is the dash logger designed to acquire and display data coming from your ECU, the internal accelerometer and gyro, as well as from the GPS08 Module included in the kit, analog/digital inputs and predefined math channels. Performance and data acquired can also be incremented adding up to eight expansion modules. Its 7″ display makes it perfect for wide cockpits installation.
