AIM MXP Strada Dash
The 6" color TFT dash for road use.
MXP Strada is a 6" colour display with great visual impact, configurable to show lap times and all the info coming from the Engine Control Unit, analog/digital inputs, pre-defined math channels and - optionally - the .
| ECU connection | Analog/digital inputs | Math channels | Second CAN | GPS09 Module |
Freely configurable pages

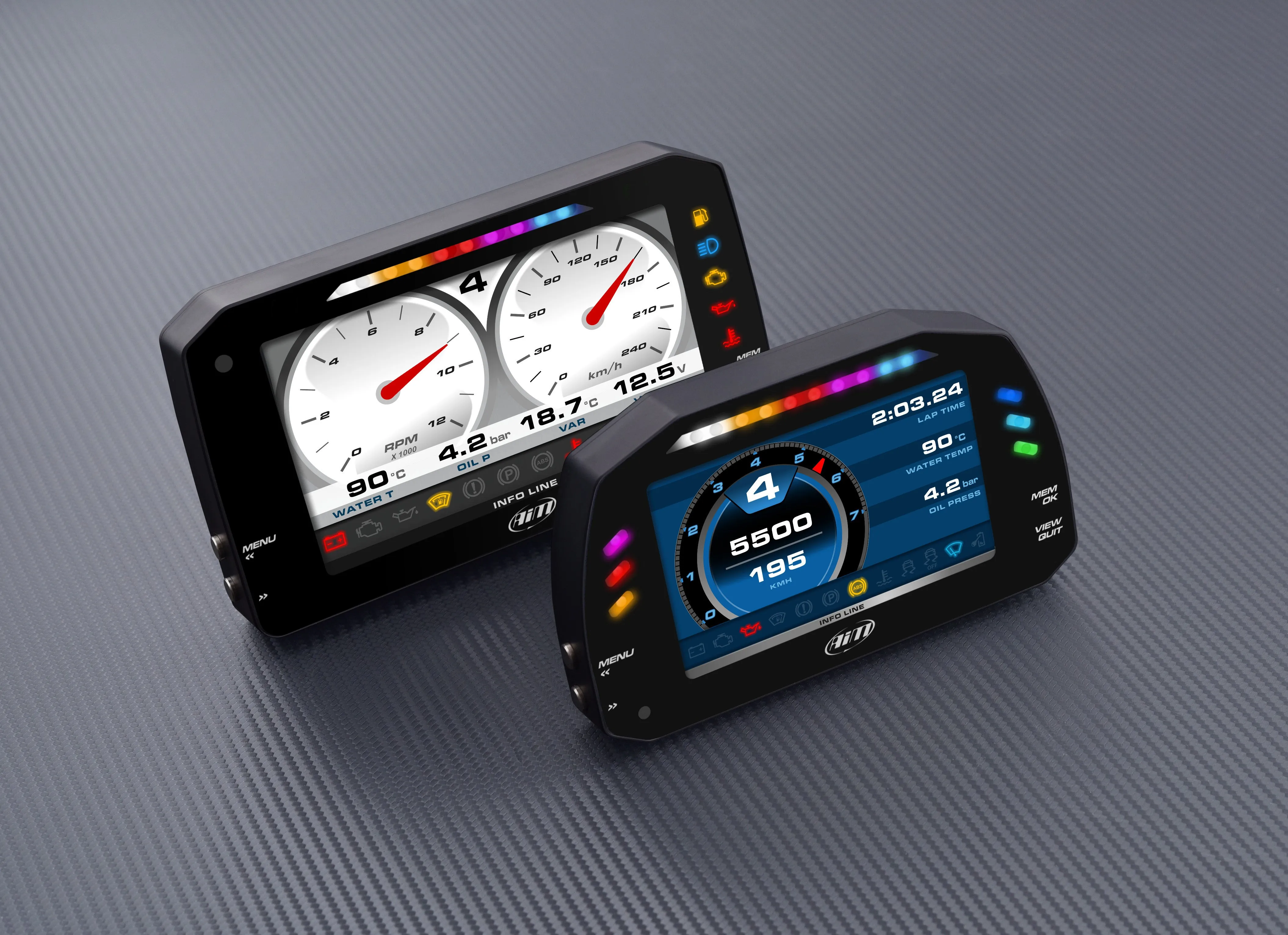

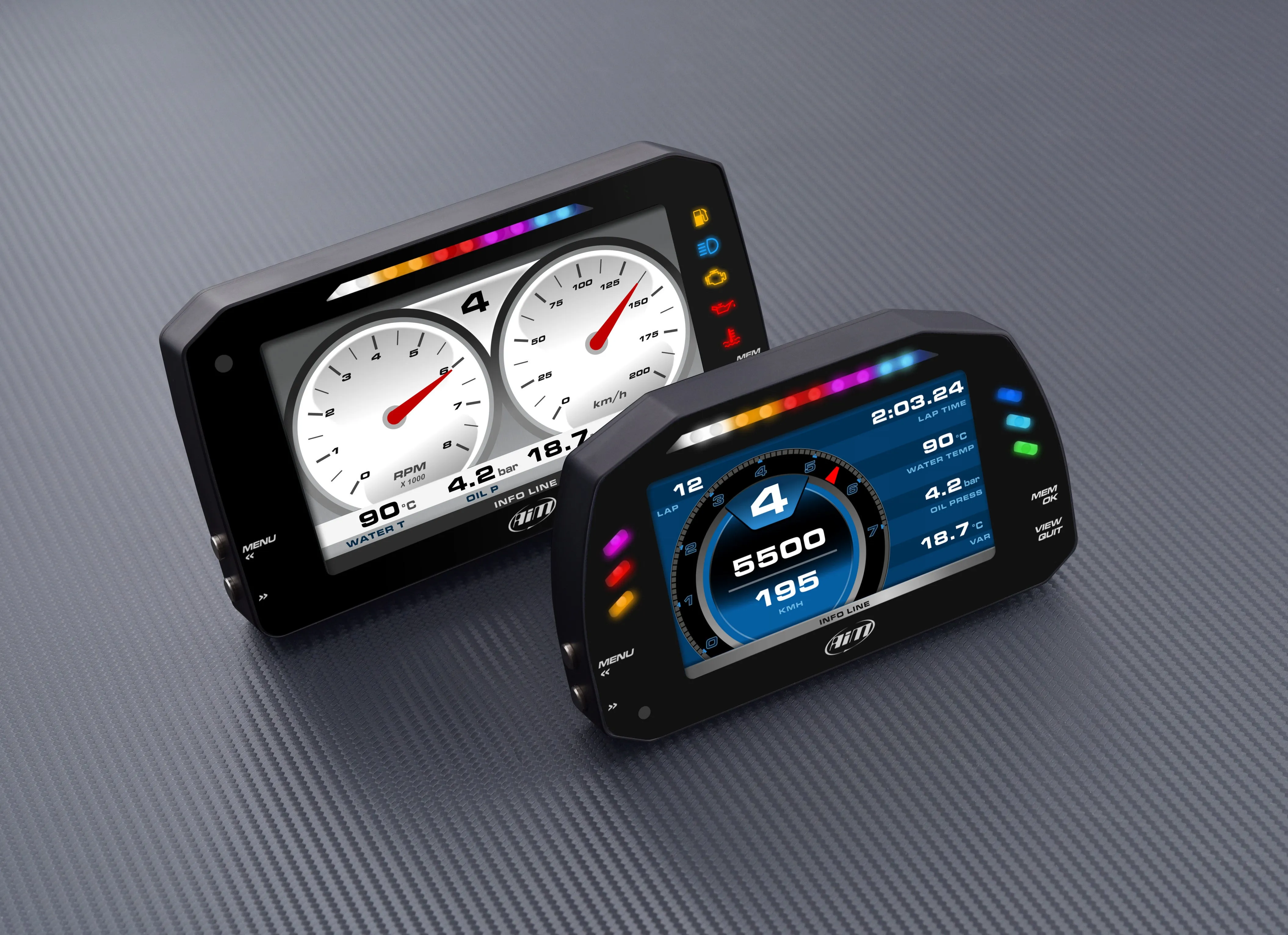

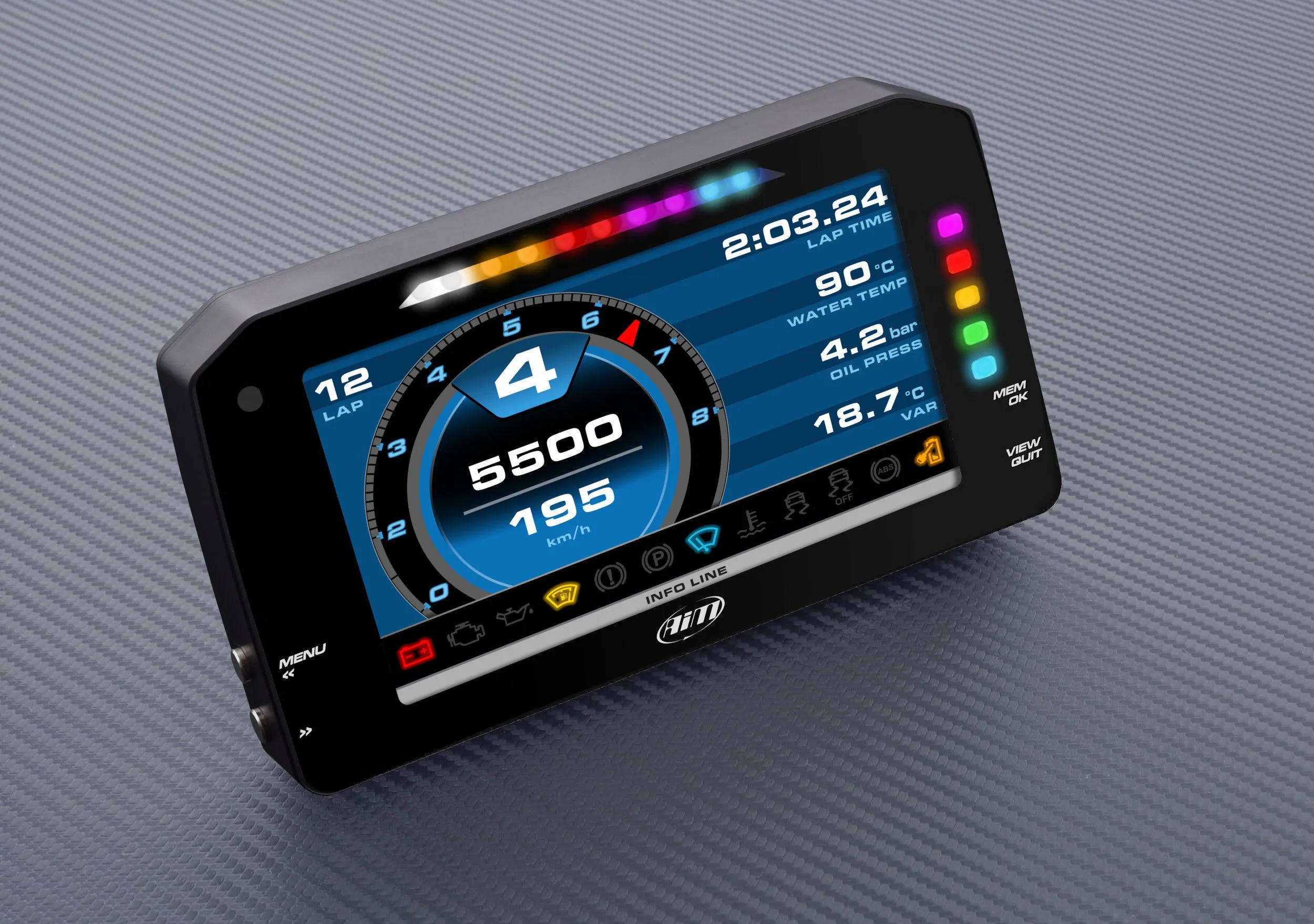

You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between pages can be managed pushing one or two pushbuttons.
High contrast TFT display

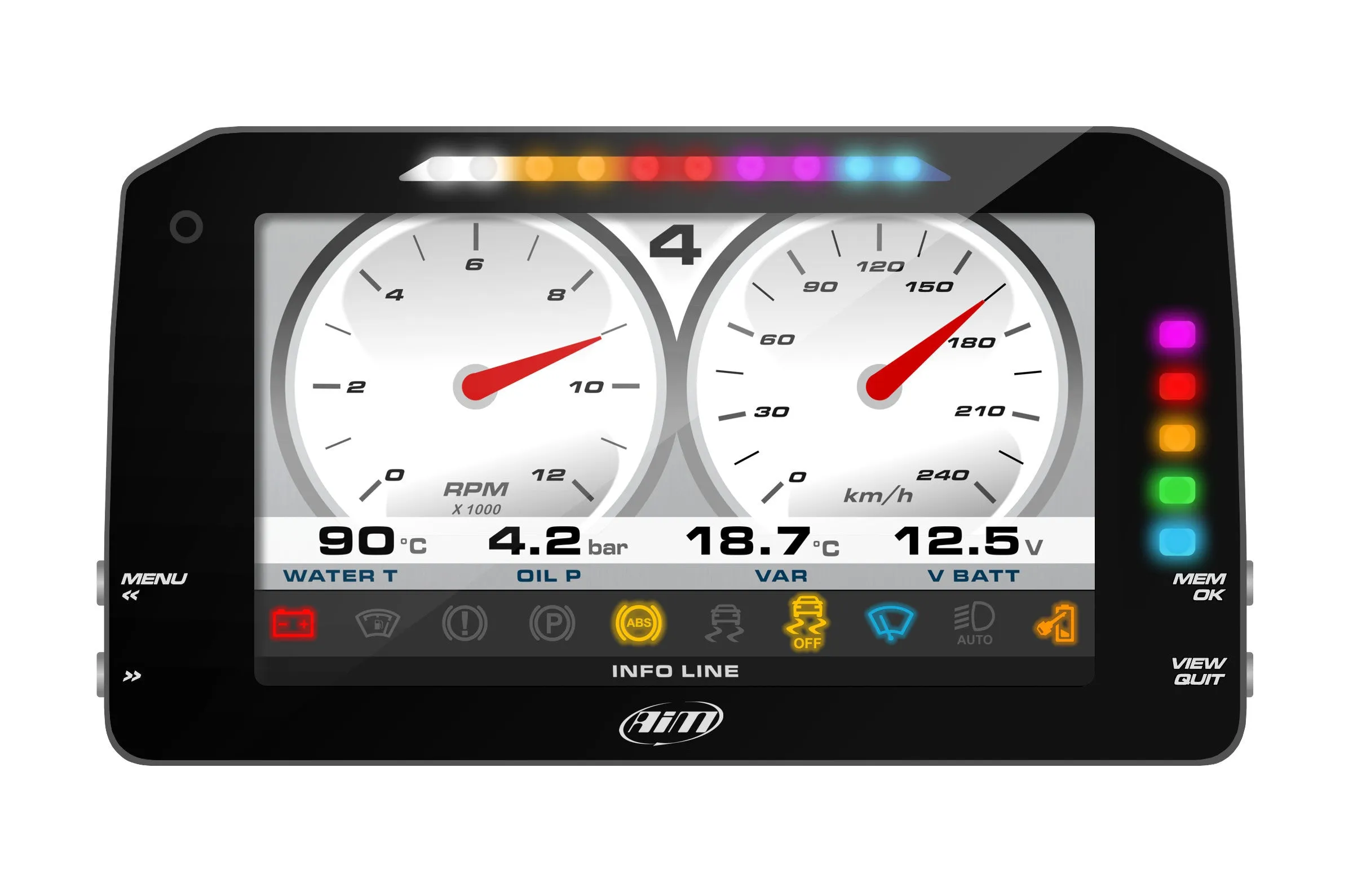

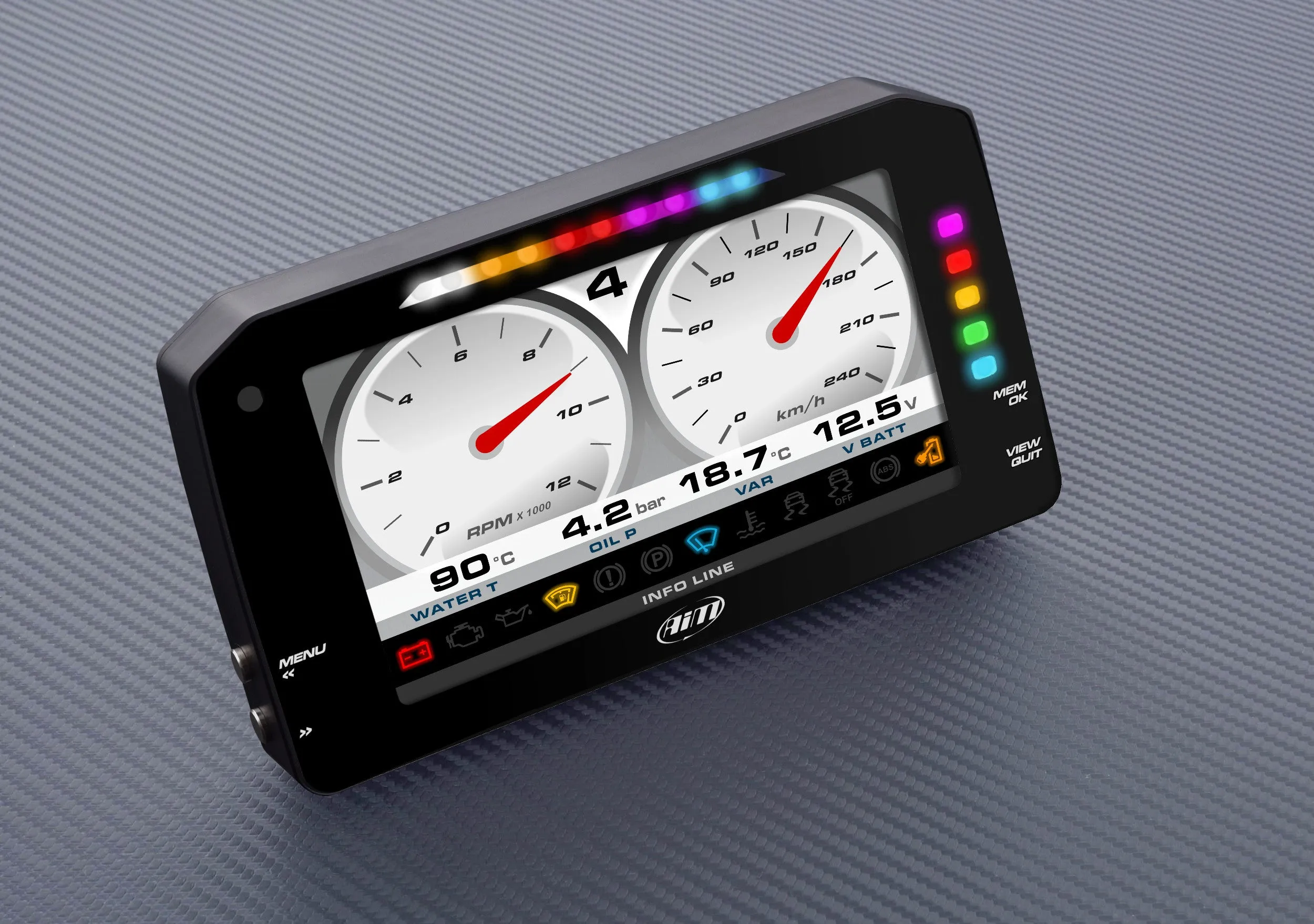

A high contrast TFT display identifies MXP Strada at the first glance. An ambient light sensor keeps the backlight at optimum brightness levels.
Flexible alarms & custom street icons

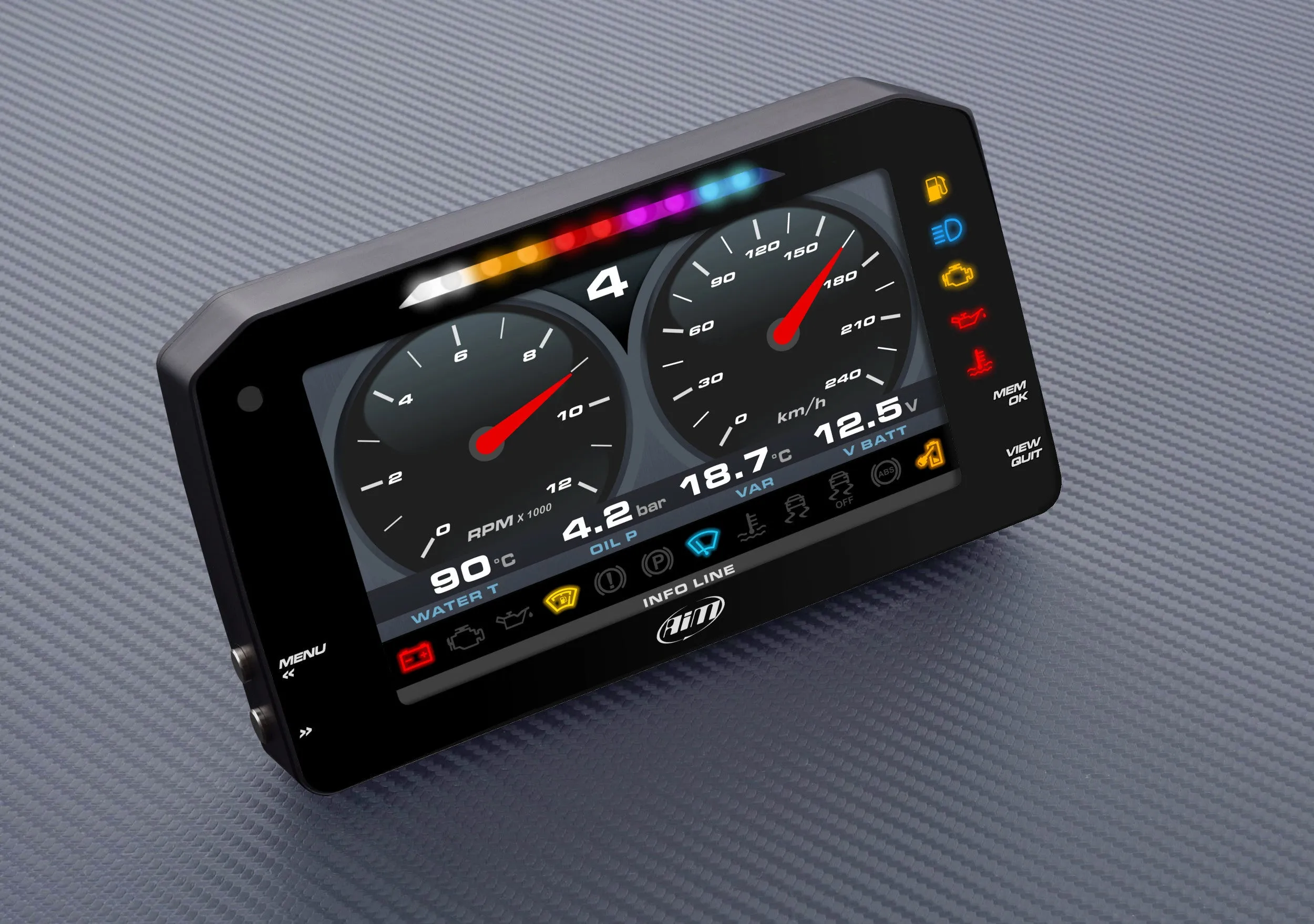

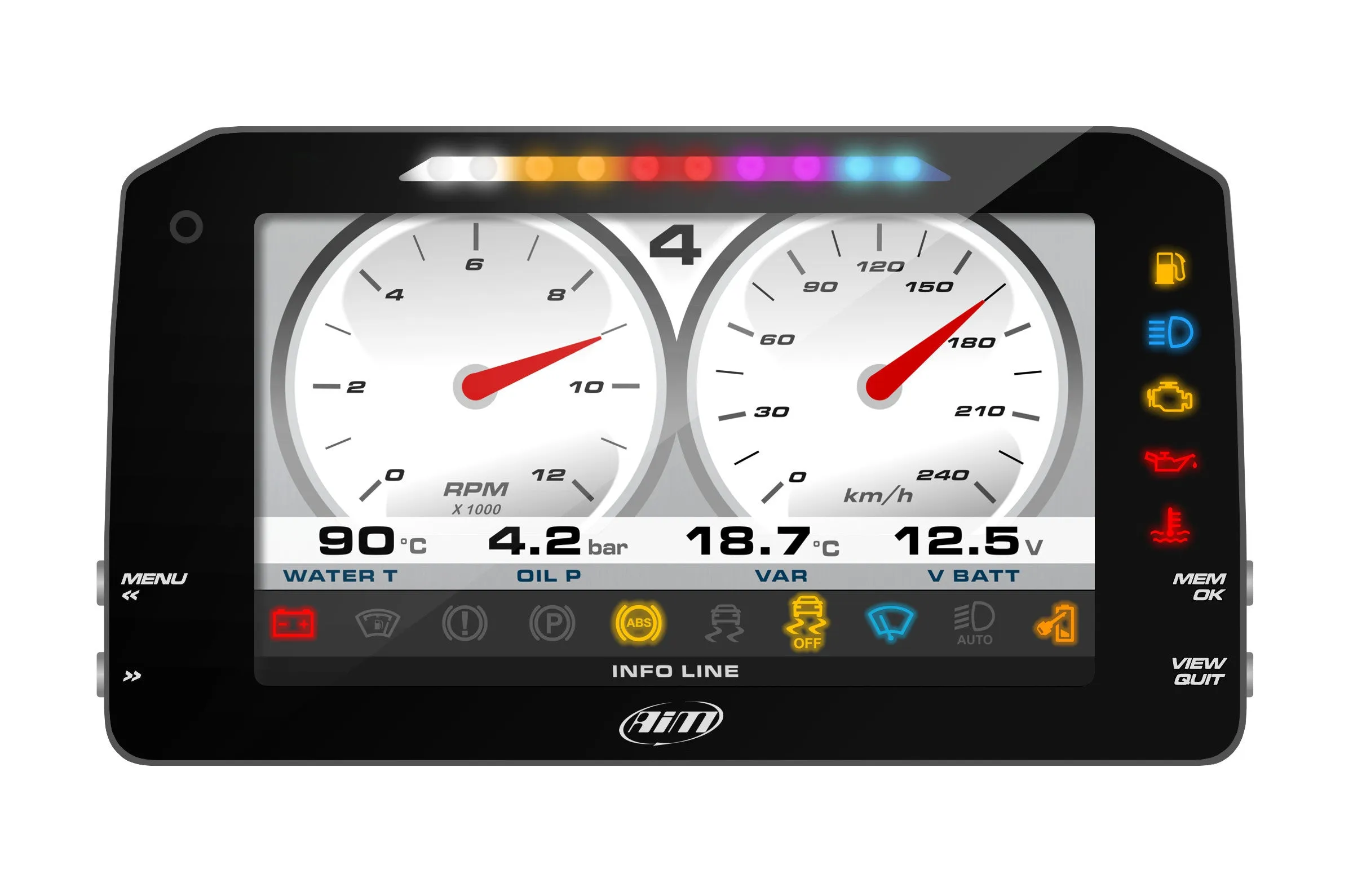

MXP Strada, in its standard version, features five configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or flashing one - and the flashing frequency, choose to have an accompanying text message, and set the alarm priorities. Furthermore you can select the street icons you need among the wide list you will find in "Race Studio 3 - Icons Management" and set them up the way you prefer or according with your needs. Any of them is fully configurable and if this shouldn't be enough, you will be able to upload and set up your own customized icons.
Digital output
MXP Strada features a LOW SIDE type (switch to ground) digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This permits to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps, etc. when a certain event happens.
Camera inputs, also for mirror camera
Two analog camera inputs are available, to swap your display into a mirror camera, through pushbutton command or event management.
Integrated shift light array
Choose from a host of advanced multicoloured RGB shift light patterns that can be customized as you like, and for each unique gear when required.
A Modular System
Using the built-in CAN bus you can add expansion modules to visualize additional info:
| Thanks to GPS09 Module and its Race Studio 3 software, you can immediately get laptimes and all data needed for engine tuning as well as for improving driving technique. | |
| It permits to add 4 0-5Volt analog channels for pressure, temperature sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed. | |
| It adds 4 K thermocouples. | |
| Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion. | |
| The on-board cameras that overlays on videos the data sampled by your logger. |
Connection example
These are only some of the items that can be added to our MXP Strada for incrementing the performance and the data acquired:
CAN output
With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.
Race Studio 3 configuration
MXP Strada is to be configured via Race Studio 3: you can create, modify, delete, import and export configurations with all channels, ECU drivers, Math channels, Display Pages, Digital output, Alarms, Shift Lights and all the expansions you need.
